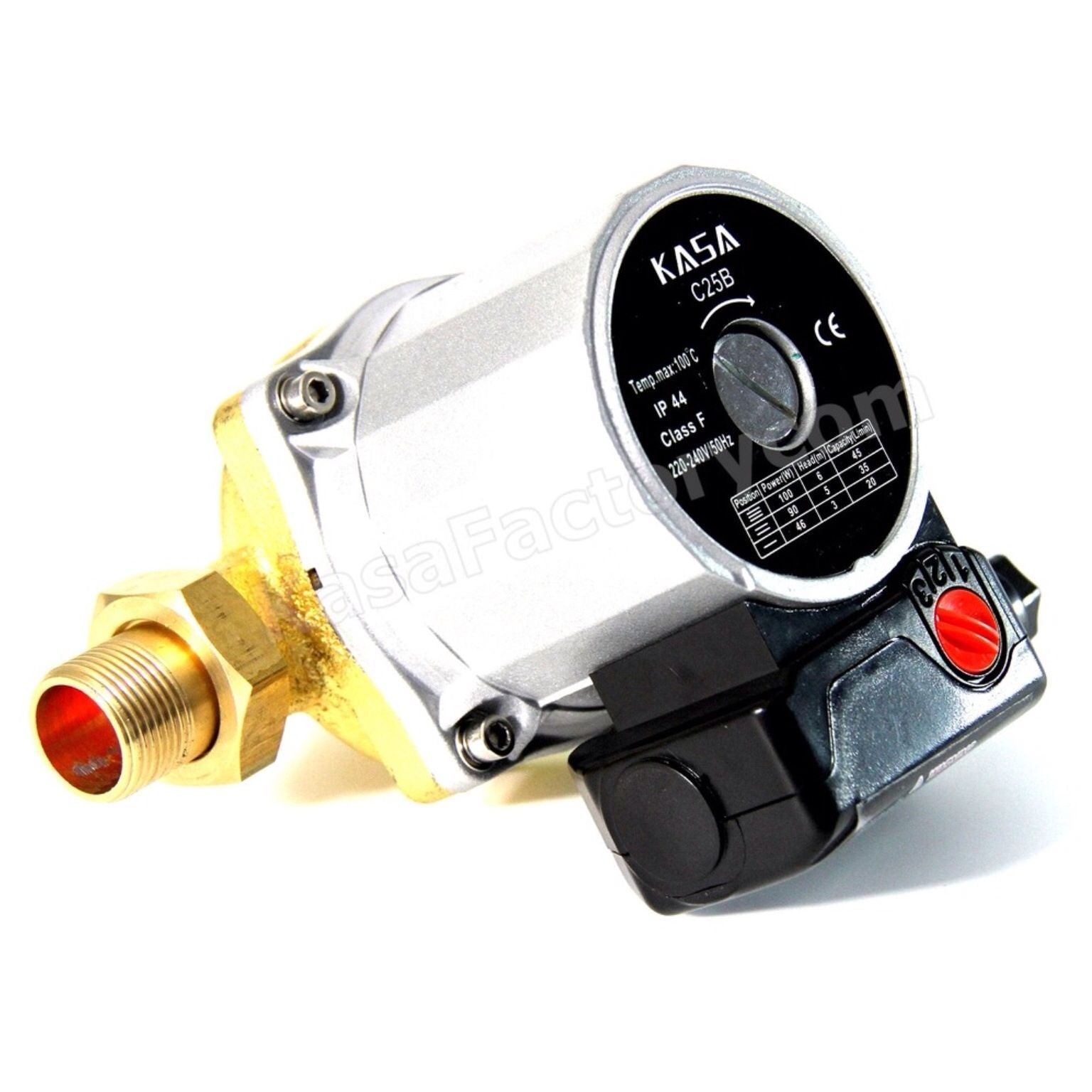

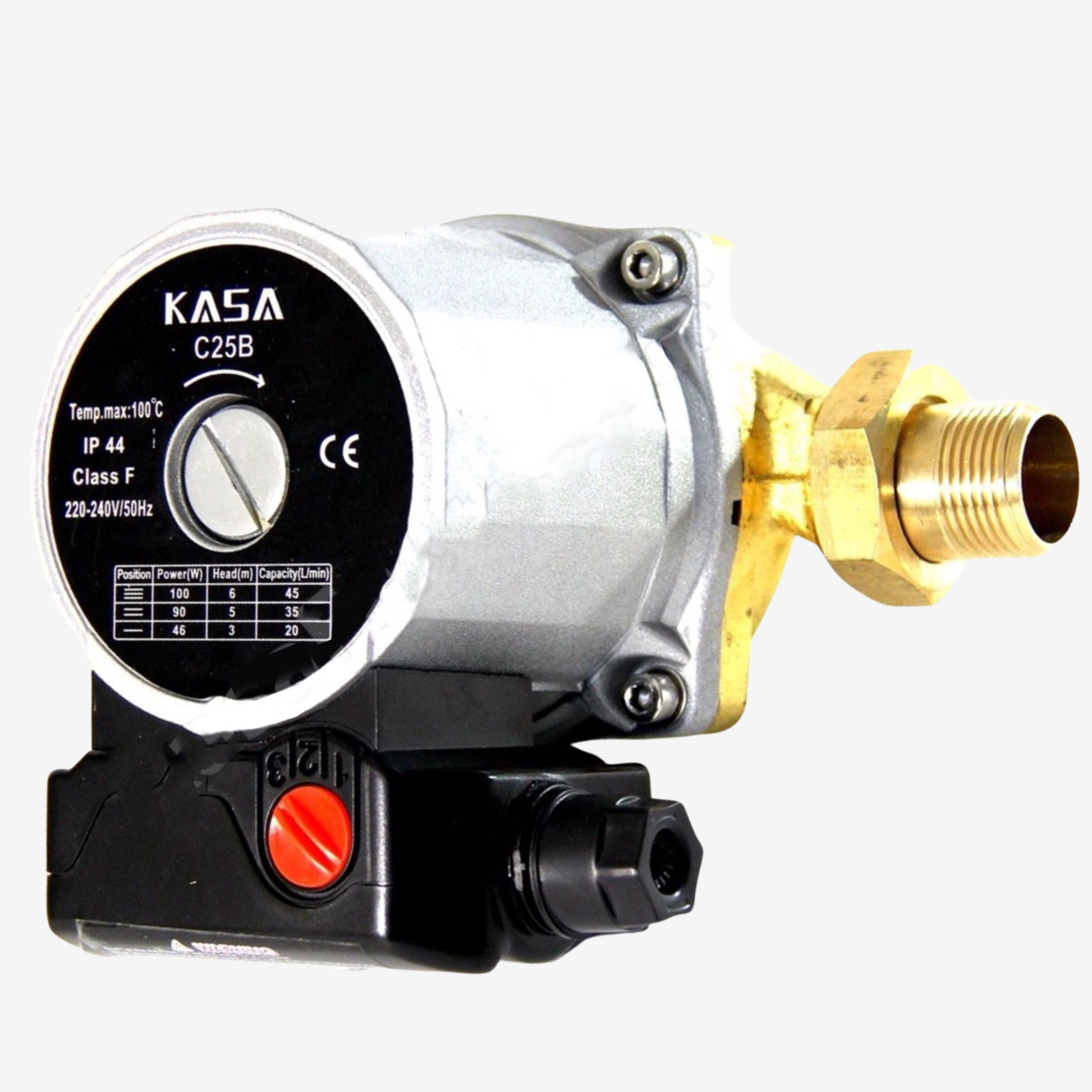

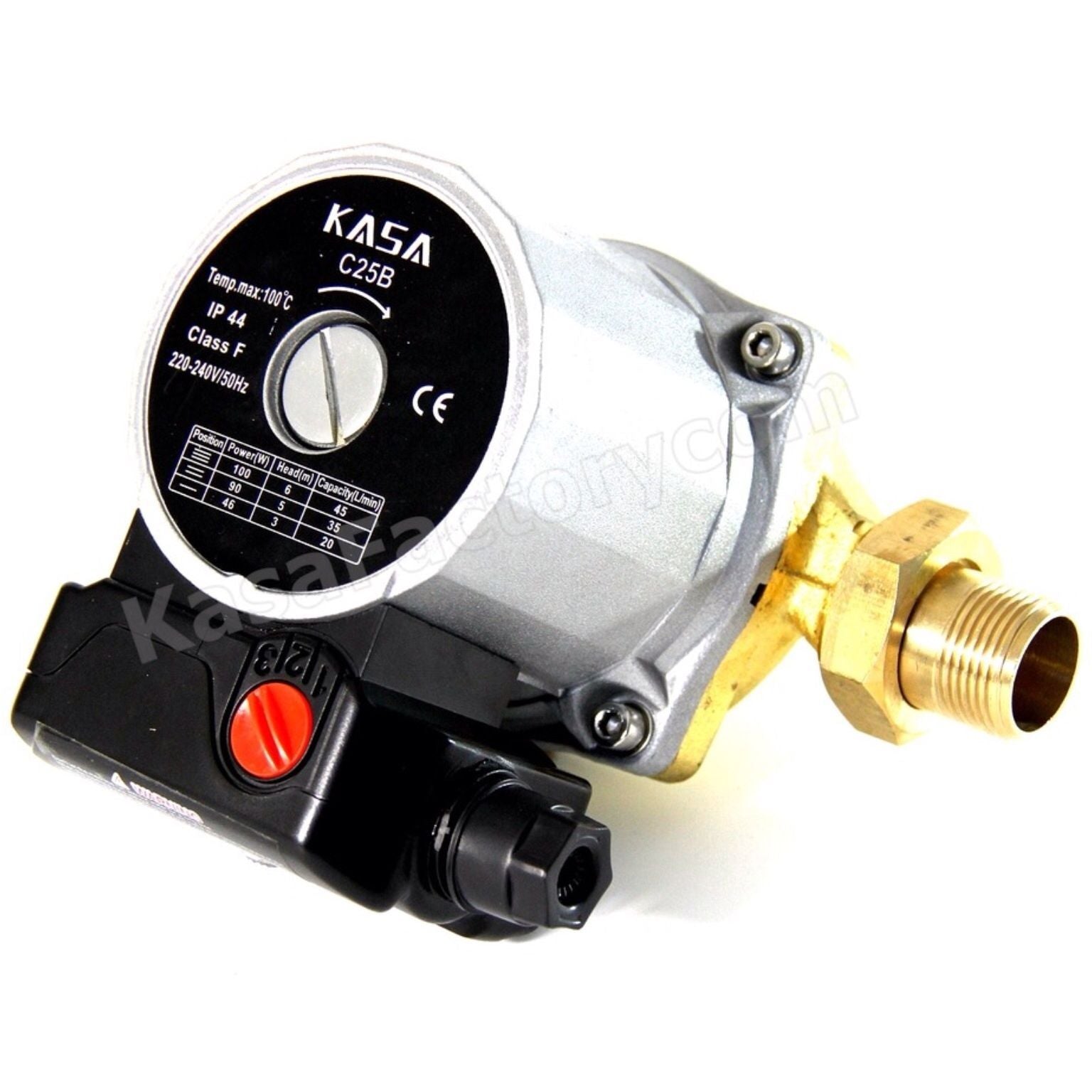

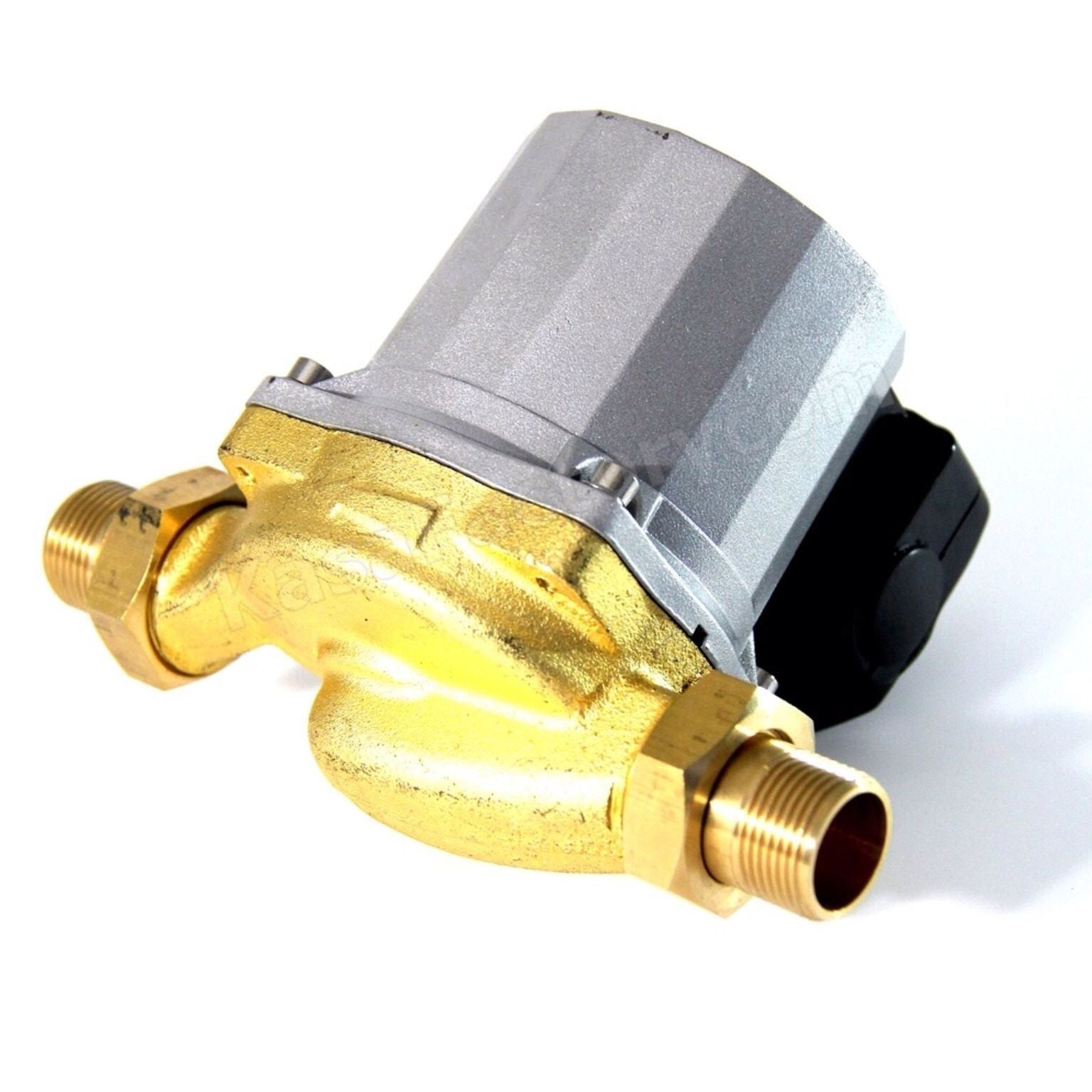

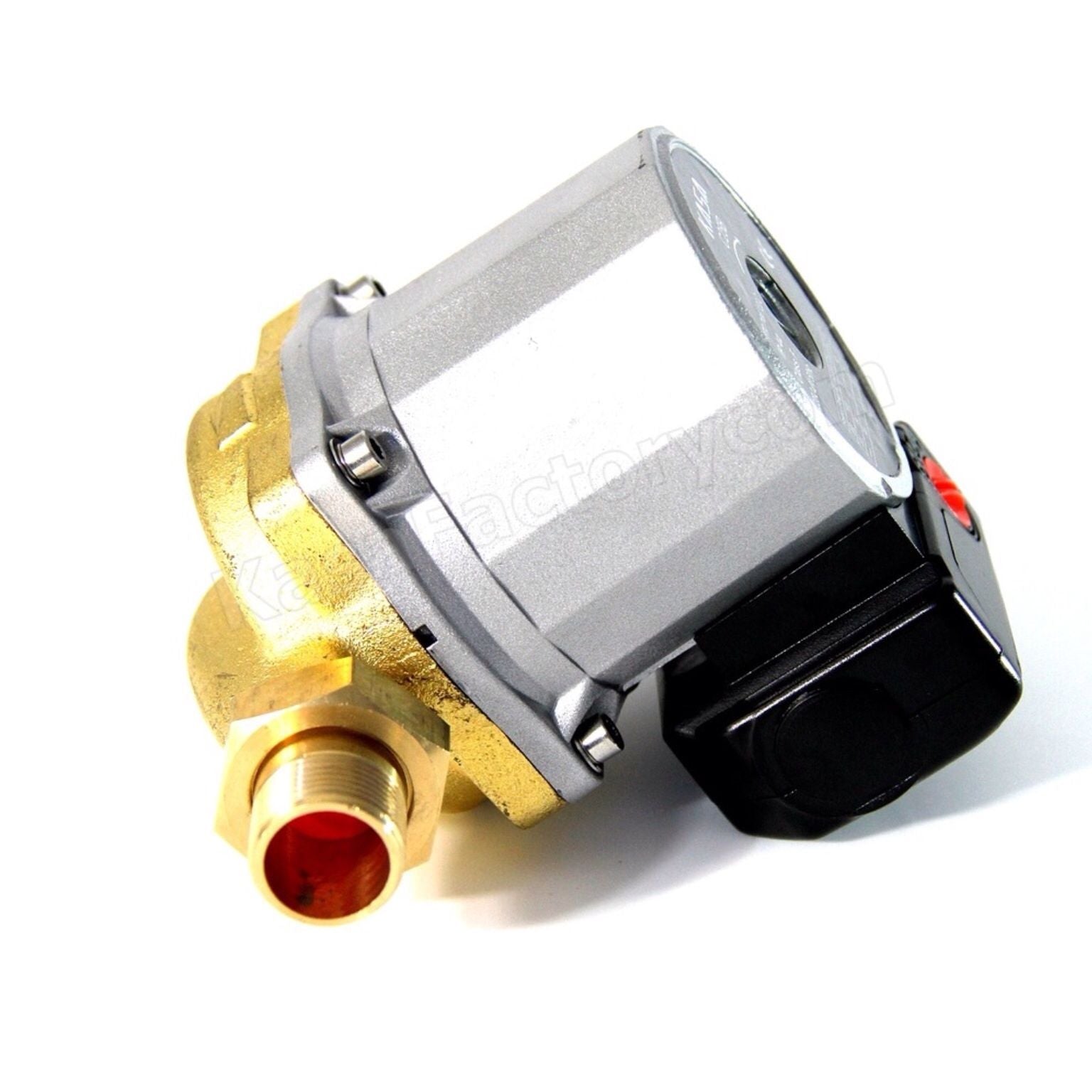

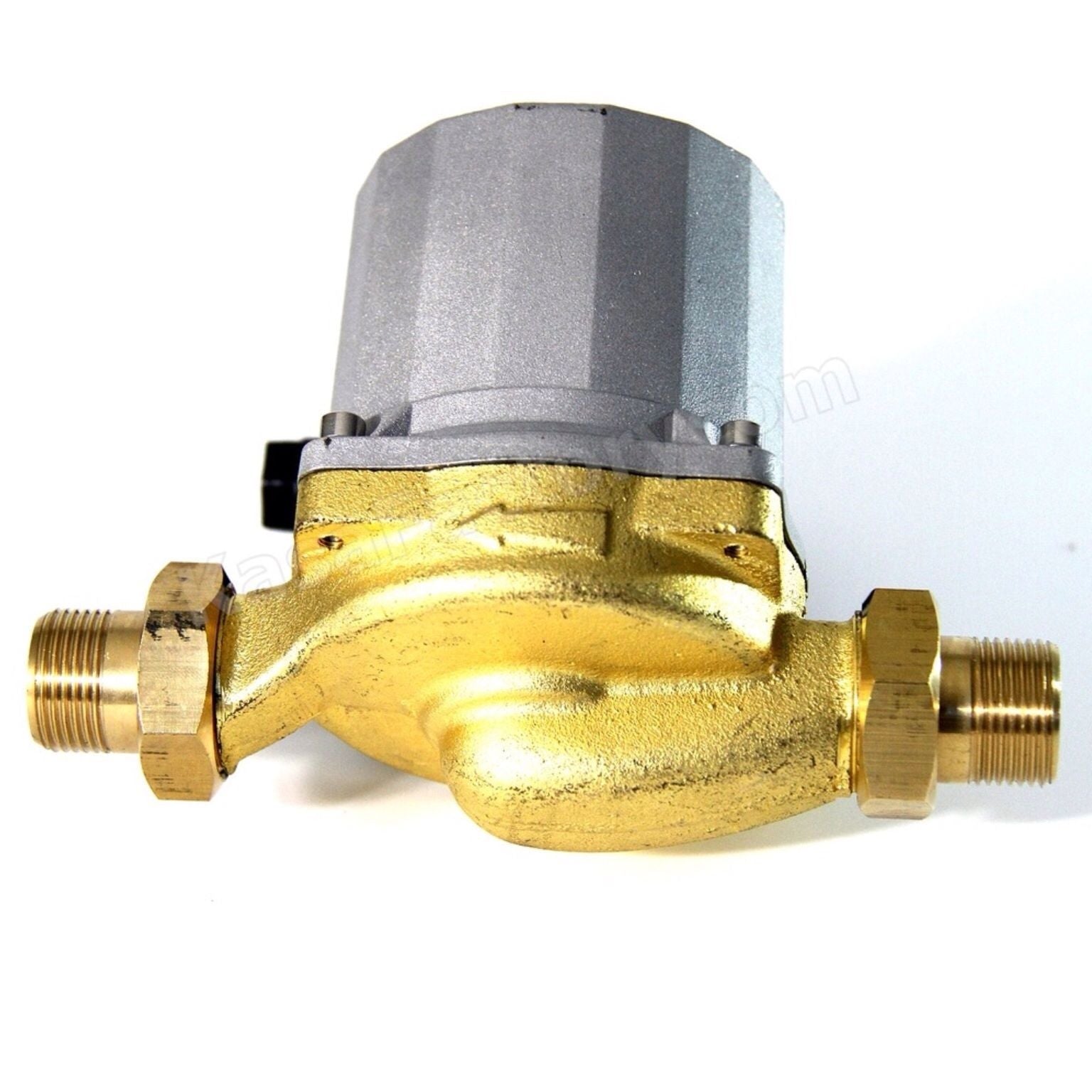

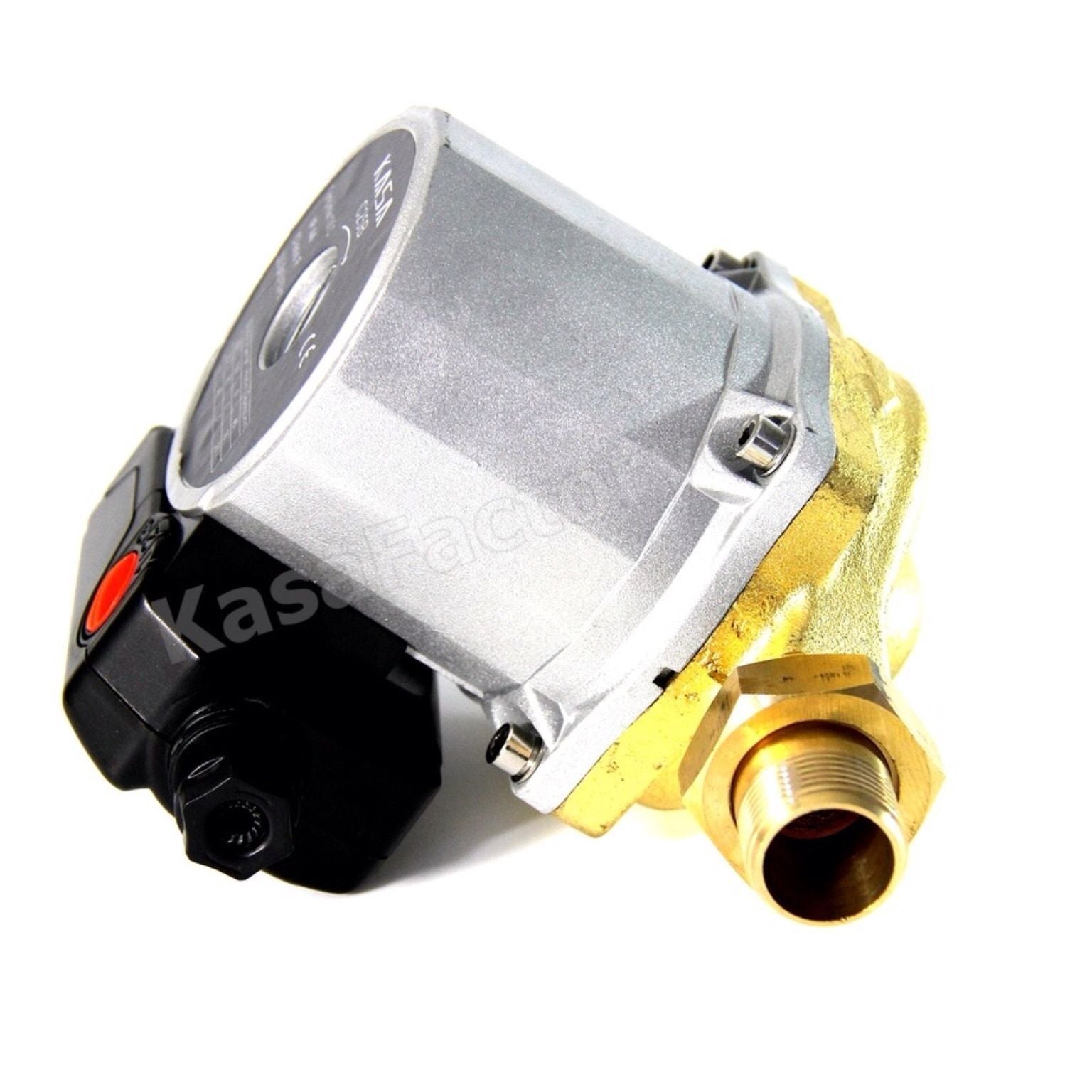

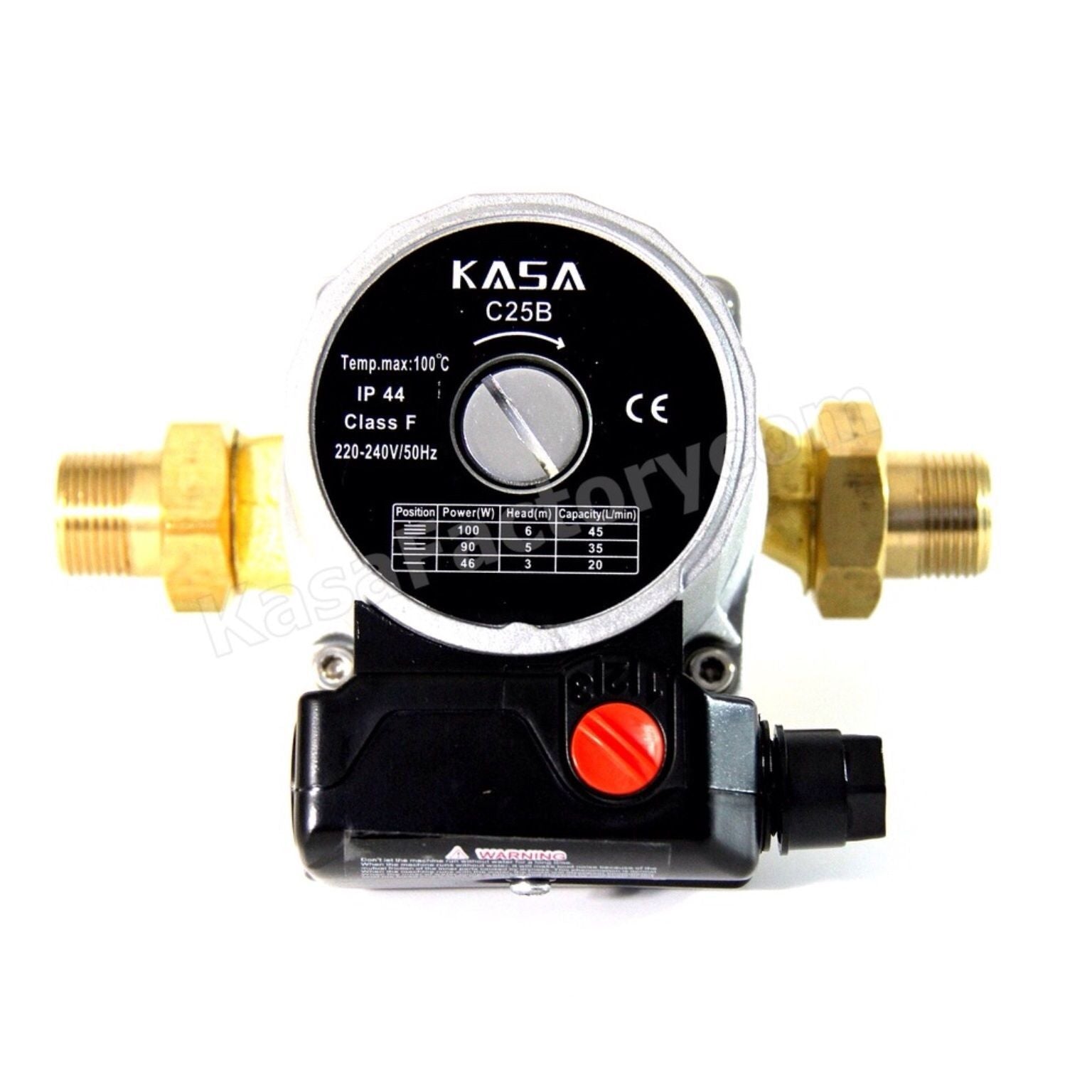

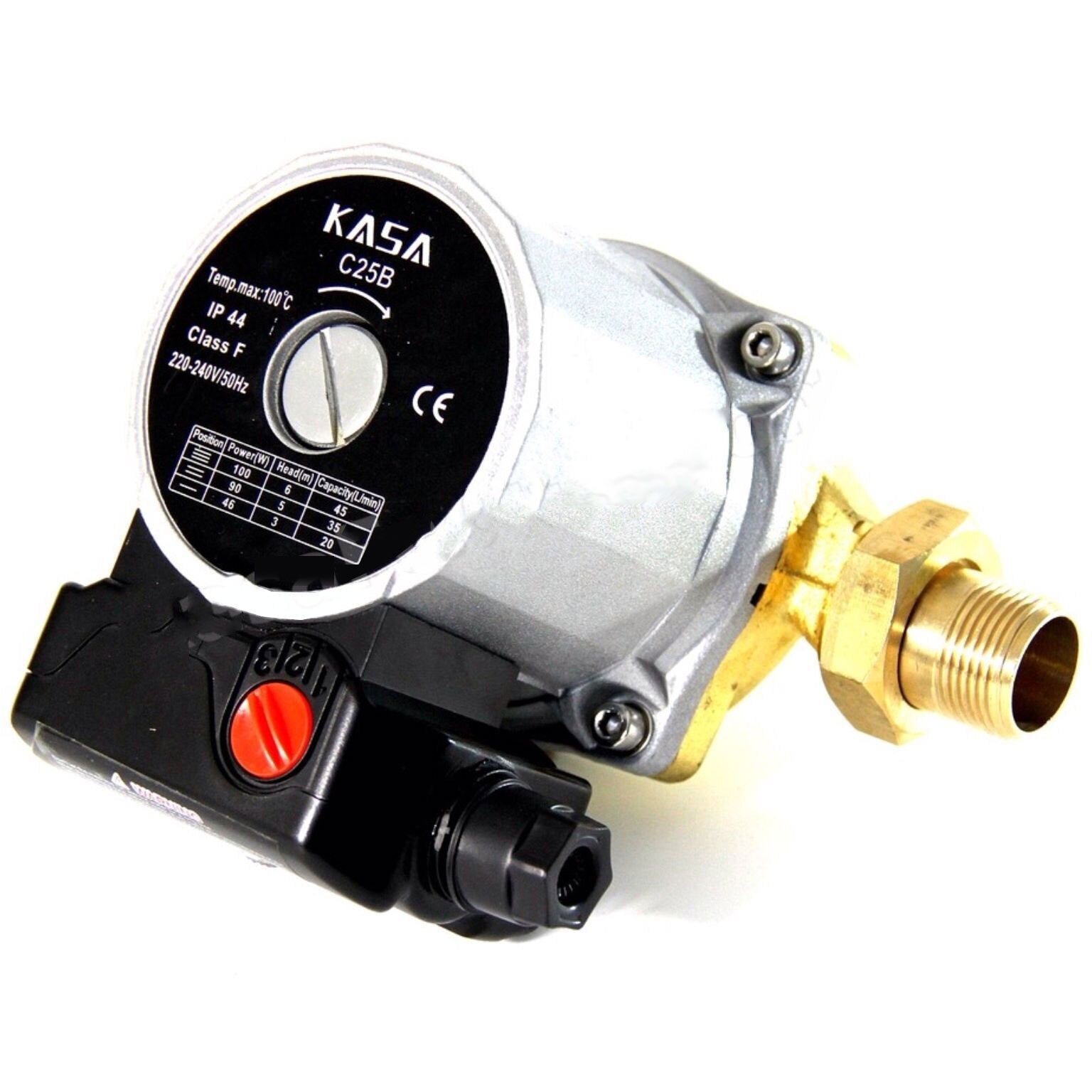

KASA Hot Water Circulation Pump 3 Speed Brass Solar Replaces Grundfos Circulating

Need to Replace your old Grundfos ups 15-60b?

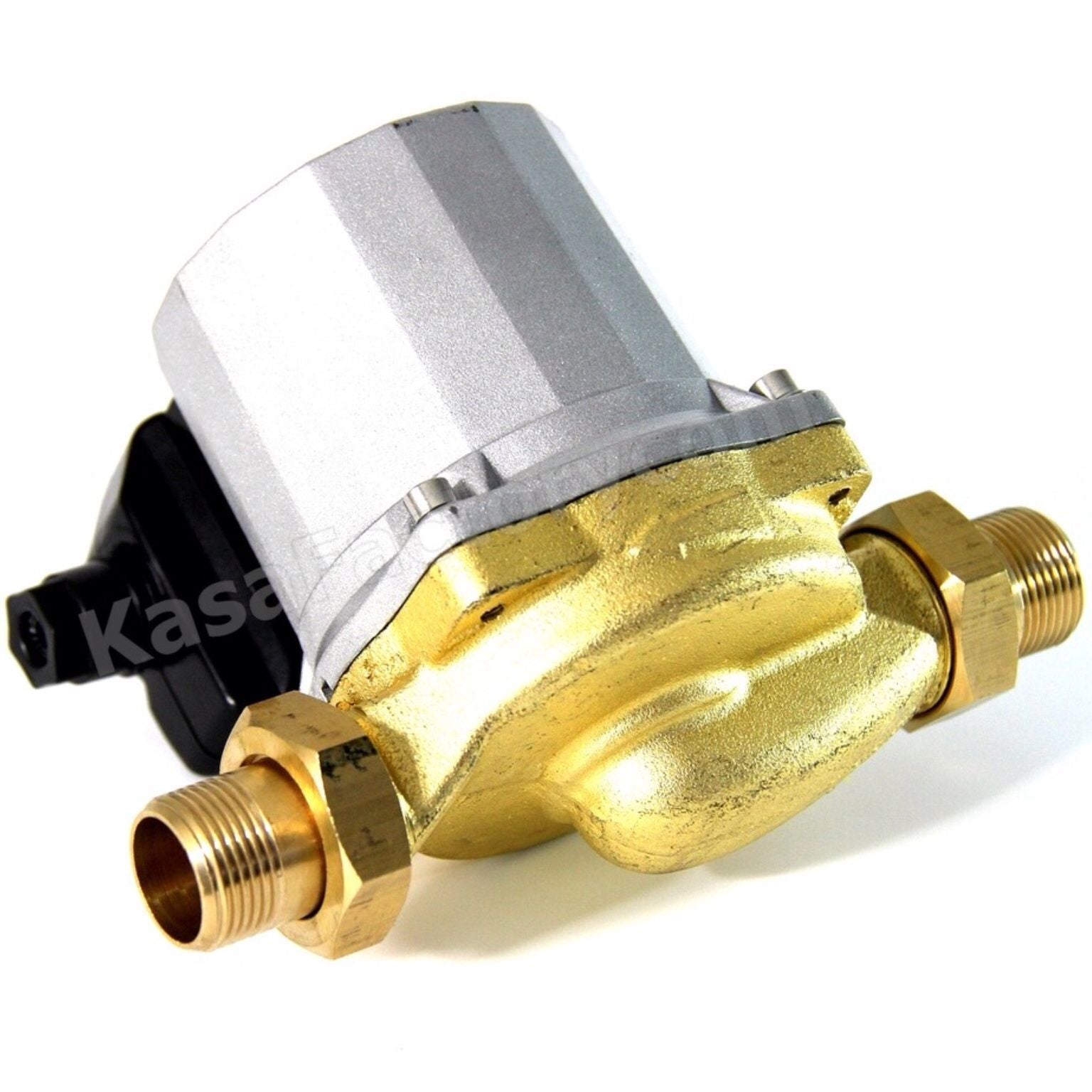

This 3 speed brass circulation pump is great solution to replace the grundfos ups 15-60b and comes with brass barrel unions and a brass pump housing making it resistant to corrosion unlike Cast iron pumps.

Direct Replacement

GRUNDFOS UPS 15-60B (130mm)

Applications

• Heating Systems
• Industrial Circulation Systems
• Air conditioning Systems
• Cold Water Cooling Systems
• Solar Hot Water Circulation
• Hydronic Heating
• Radiant in-floor Heating
• Panel Heating


Features

• Variable 3 Speed Controller to match the required output
• BRASS PUMP HOUSING preevents corrosion
• BRASS UNION SET included
• Complete with 1.2m cord and Australian SAA approved Electrical Plug (No wiring required)
• Canned Rotor Pump (means pump and motor form an integral unit without shaft seal and with only two gaskets for sealing)
• Liquid Temp Range  +2 C to +110
• Continuosly rated
• Ceramic Motor Shaft - better then stainless steel shaft
• Radial Bearings
• Quite Operation < 45dBA
• Low Energy
• Maintenance FREE
• Can be used in both open and closed systems


Specifications

• 1*230V, 0.4A, 50Hz
• Enclosure Class (IEC 34-5) IP44
• Insulation Class (IEC 85) F
• Thermal Protection Impedance Protected
• Capacitor Size - Run 2.5uF
• Weight 2.4kg
• Port to Port Dimensions 130mm
• Inlet / Outlet Pipe Size 25mm (1")

IN THE BOX:

BRASS 3 SPEED SOLAR HOT WATER CIRCULATION PUMP REPLACES GRUNDFOS UPS 15-60B

WARNING

This pump should be installed by a qualified professional. Hot water from a standard or gravity-feed hot water system can cause serious injury.
To ensure warranty, the pump motor must be mounted horizontally so that water flowing through the pump lubricates the pump motor bearings. The electronic control box should also be mounted on the upper side of the pump body to avoid water gathering in the electronic box. Warranty is also void if you let the pump run dry or do not adequately ensure that there are no air pockets in the pump or pipes. This pump is not designed to be open to the weather. This pump should only be used indoors or in the ceiling cavity.
