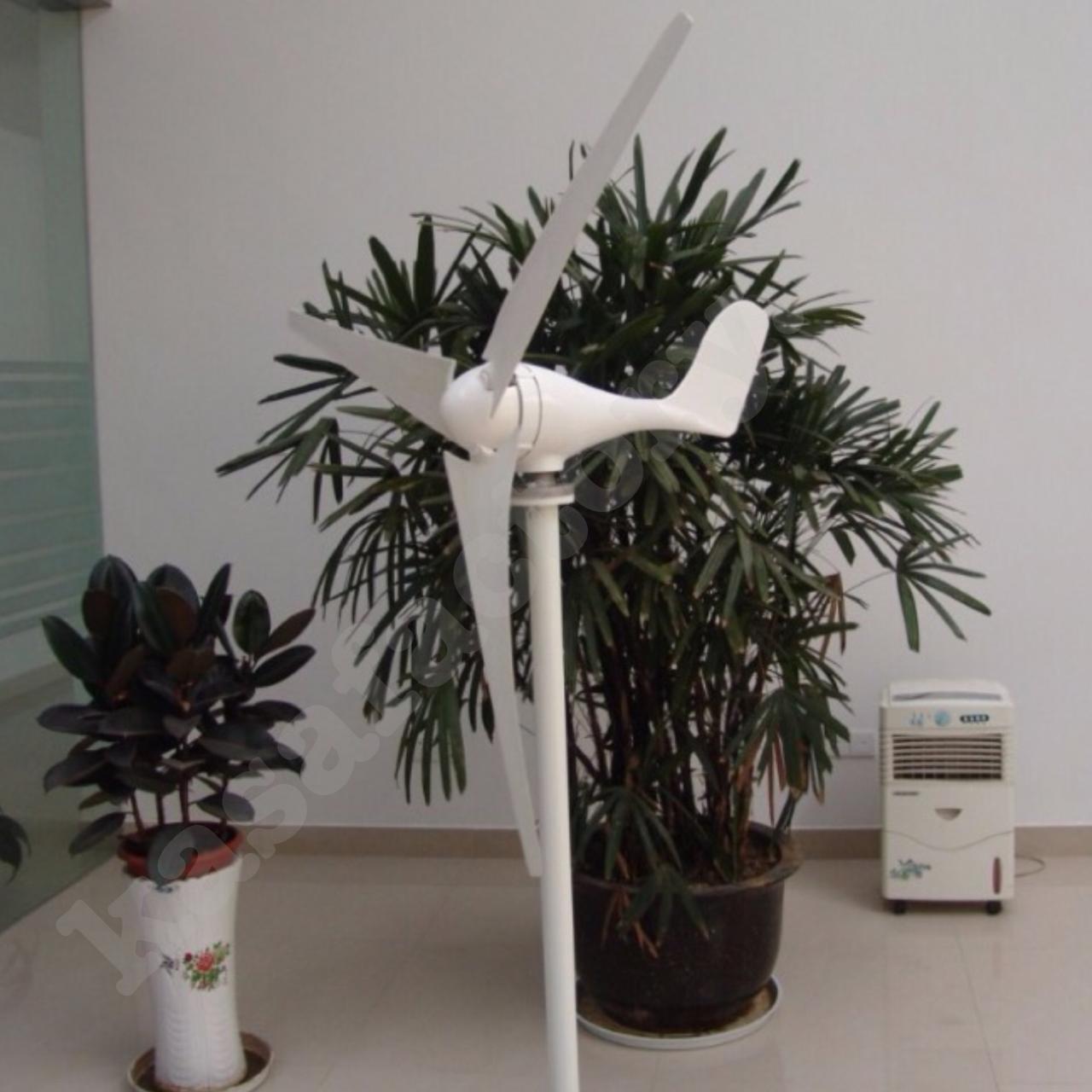

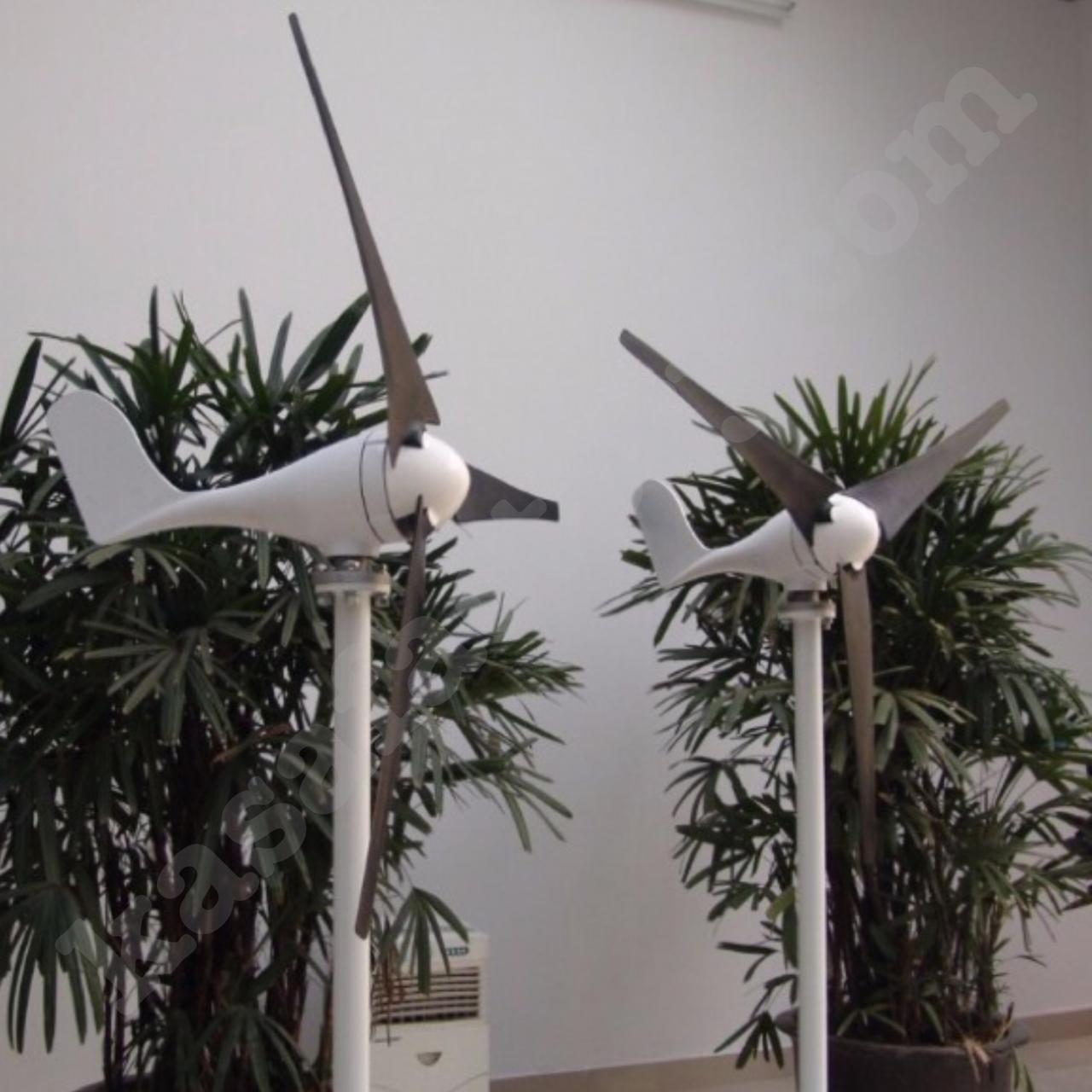

300W 12V Wind Turbine Generator 3 Blade - Digital Hybrid Wind/Solar Controller

Here it is! Complete with Wind / Solar Hybrid Digital Controller - Genuine KASA Series IV Next Gen Wind Turbine Technology with patent tail axis rotation. Our wind turbines will turn facing the maximum amount of wind 100% of the time. Our unique design ensures reliable and effecting power generation guaranteed 24/7

Guaranteed to Generate Electricity Power even at the low wind speeds of 7km/hr ( similar to human walking speed ). Need to charge a 12V battery from 50AH upto 250AH - No problems as long as you have some wind!! Even if you do not have any wind our hybrid controller will allow you to connect to wind power or sun power. This means you can connect to any 12V solar panel into our hybrid controller to produce electricity even when there is no wind (as long as you connect our controller to a 12V solar panel - solar panel not provided)

Applications:

• Home
• Caravan
• Camping
• Boat
• Telecommunications
• Street lights

Features:

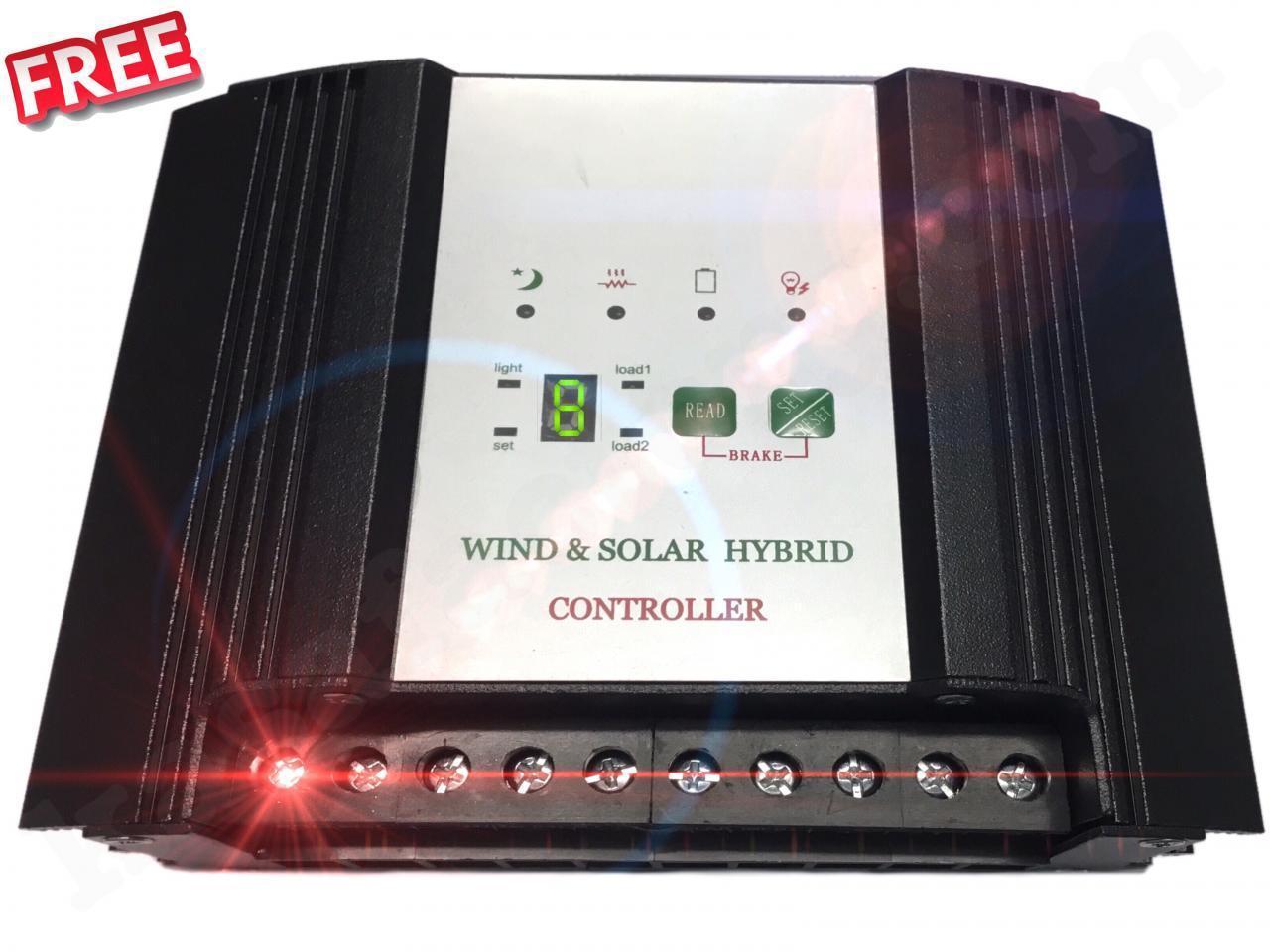

• FREE Hybrid Digital Controller Supplied with built-in over load protection means you can connect a 12V solar panel as well
• 7 km/hr Low Start Up Speed
• Patent Tail Axis Rotation means turbine rotates automatically
• Turbine head facing the inward winds 100% of the time
• Easy installation with flange fitting provided
• High Strength Precision Blades for maximum efficiency
• Permanent Magnet AC synchronised generator
• Turbine Body made from Aluminium alloy makes it strong, light and rust proof
• Two heavy duty swivel bearings inside turbine
• Light weight and portable

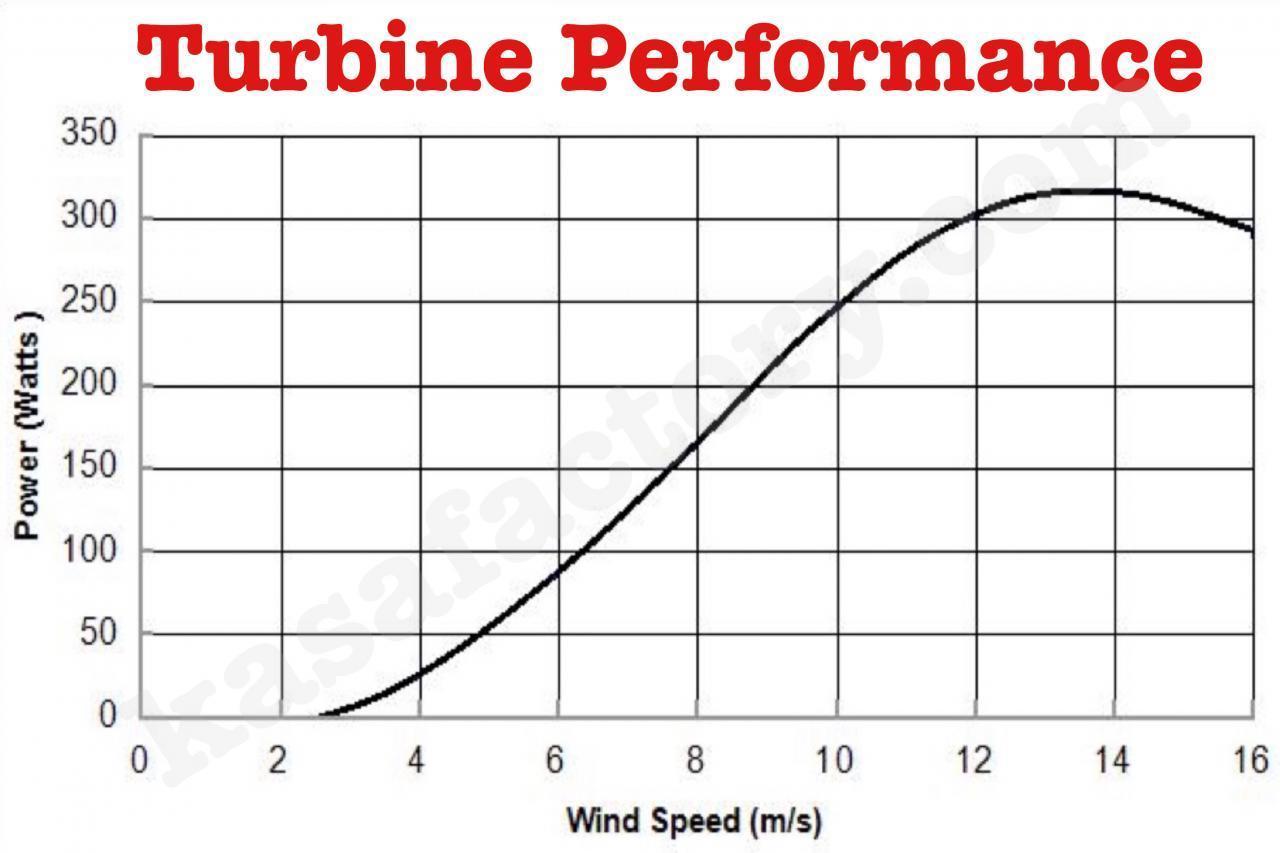

• Specifications
• Rated Power 300W
• Maximum Power 310W
• Rated Voltage 12V
• Noise Rating < 60dB

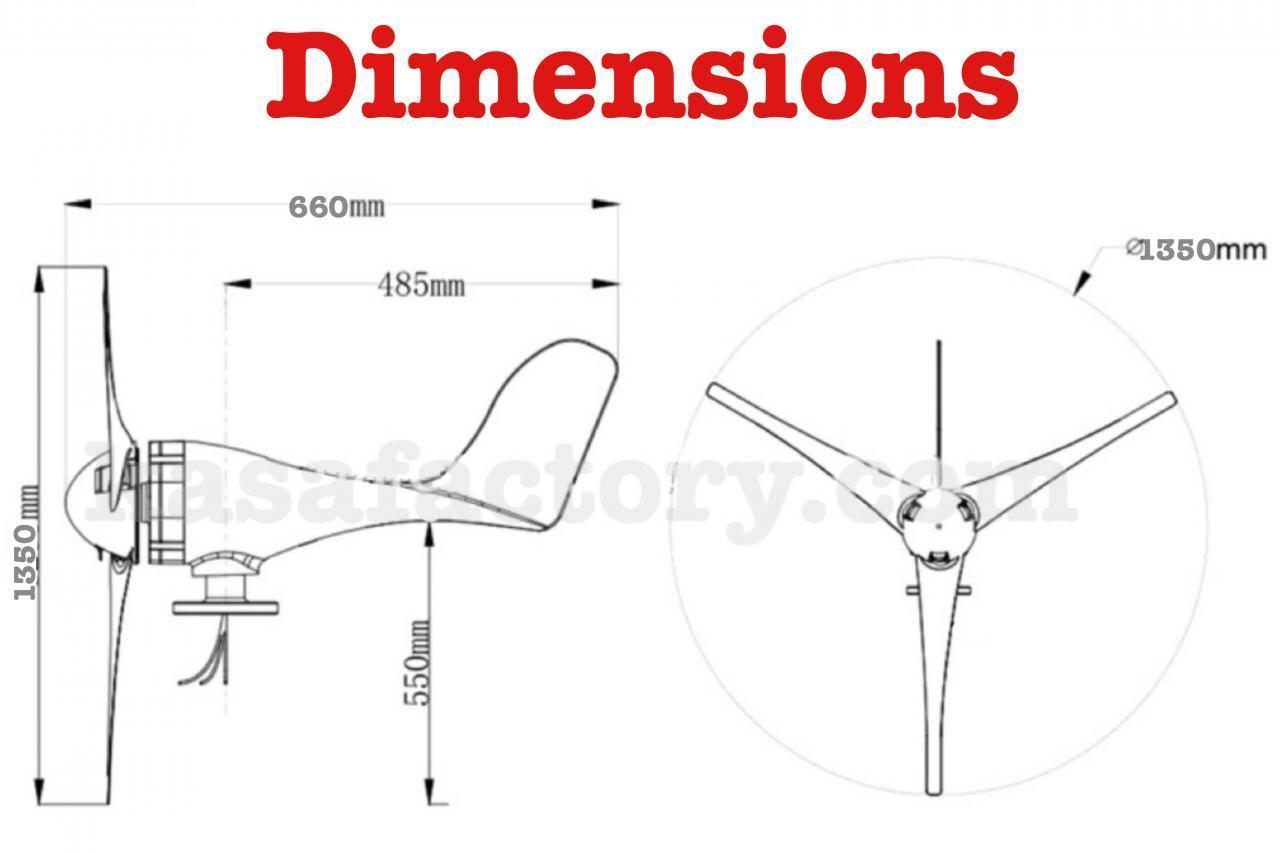

• Wheel diameter 1.35m
• Start up Wind Speed 7 km/hr
• Rated Wind Speed 50 km/hr
• Survival Wind Speed 160 km/hr
• Net Weight 9.5 kg
• No. of blades 3
• Working temperature -40 to +80 degrees celcius
• Design Life 20 years

Controller Specifications:

• TOTAL WIND / SOLAR (max) 400W
• Wind Power (max) 300W
• Solar Power (max) 100W

Simple Basics before install below-

• Read Installation Manual Supplied before installing (very important if you are new to this technology)
• Do not install on rainy or windy days
• Connect the 3 wires from wind turbine together to fuse them and do not hand spin before final connection. The wind turbine produces electricty and should not be connecetd until controller and battery are connected first.
• Connect Controller to Battery before anything else. Only after you have connected controller to battery are you allowed to connect wind turbine
• Do not use wind turbine without a controller/battery as electricity is produced which needs to be stored
• Do not install blades upside down otherwise, bolts will not fit into turbine hub (see install pictures)

Package includes:

• 300W 12V KASA Series IV Wind Turbine
• FREE Hybrid Digital Controller included means you can connect solar panel (optional)

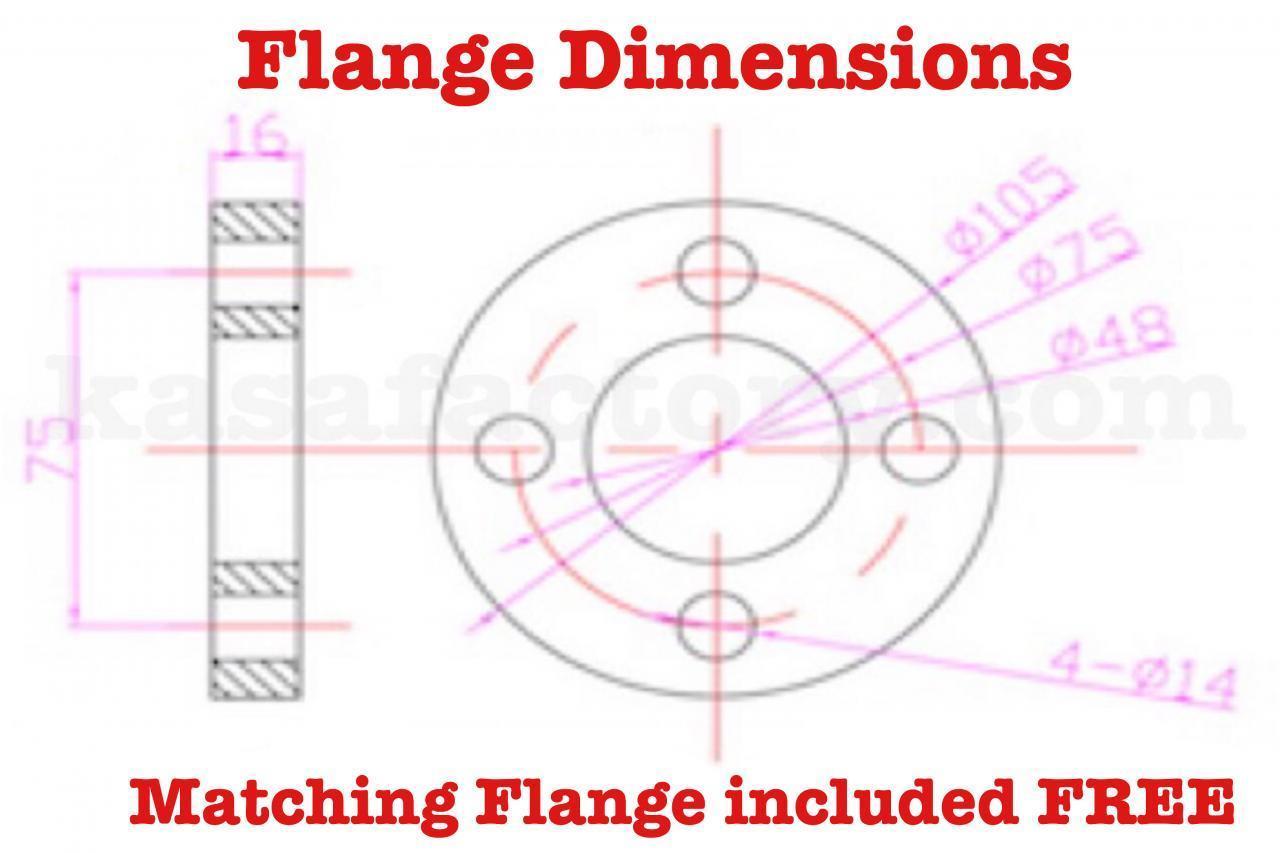

• Installation Flange with bolts included
• Installation and assemble manuals for both wind turbine and controller
