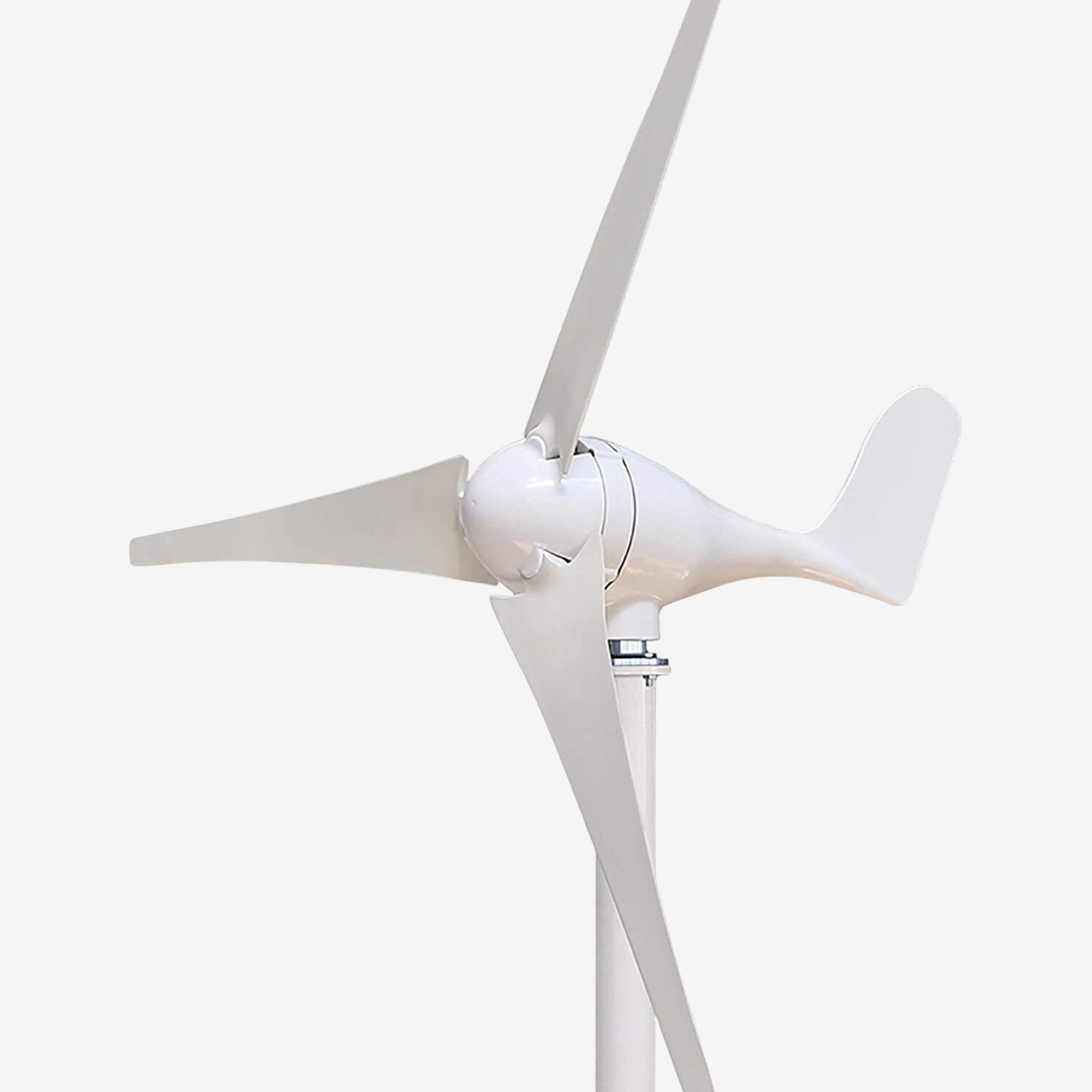

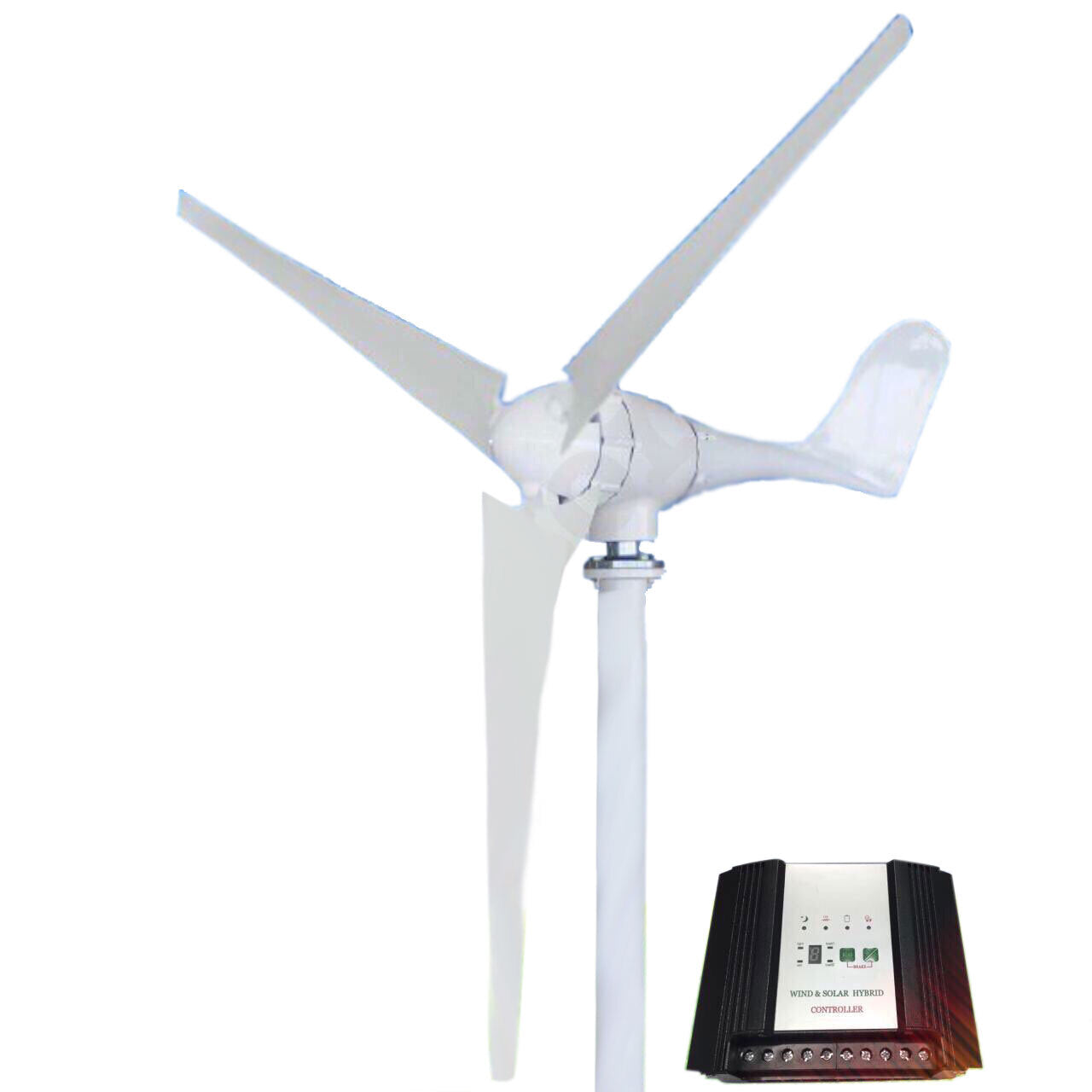

200W Wind Turbine Generator 3 Blade Digital Hybrid Wind/Solar Controller

Here it is! Complete with Wind / Solar Hybrid Digital Controller - Genuine KASA Series IV Next Gen Wind Turbine Technology with patent tail axis rotation. Our wind turbines will turn facing the maximum amount of wind 100% of the time. Our unique design ensures reliable and effecting power generation guaranteed 24/7

Guaranteed to Generate Electricity Power even at low wind speeds of 7km/hr ( similar to human walking speed ). Need to charge a 12V battery from 50AH up to 250AH - No problems as long as you have some wind!! Even if you do not have any wind our hybrid controller will allow you to connect to wind power or sun power. This means you can connect to any 12V solar panel into our hybrid controller to produce electricity even when there is no wind (as long as you connect our controller to a 12V solar panel - solar panel not provided)

Applications:

• Home
• Caravan
• Camping
• Boat
• Telecommunications
• Street lights

Features:

• FREE Hybrid Digital Controller Supplied with built-in overload protection means you can connect a 12V solar panel as well
• 7 km/hr Low Start-Up Speed
• Patent Tail Axis Rotation means the turbine rotates automatically
• Turbine head facing the inward winds 100% of the time
• Easy installation with flange fitting provided
• High Strength Precision Blades for maximum efficiency
• Permanent Magnet AC synchronized generator
• The turbine Body is made from Aluminium alloy making it strong, light, and rust proof
• Two heavy-duty swivel bearings inside the turbine
• Lightweight and portable
• Specifications
• Rated Power 200W
• Maximum Power 230W
• Rated Voltage 12V
• Noise Rating < 60dB

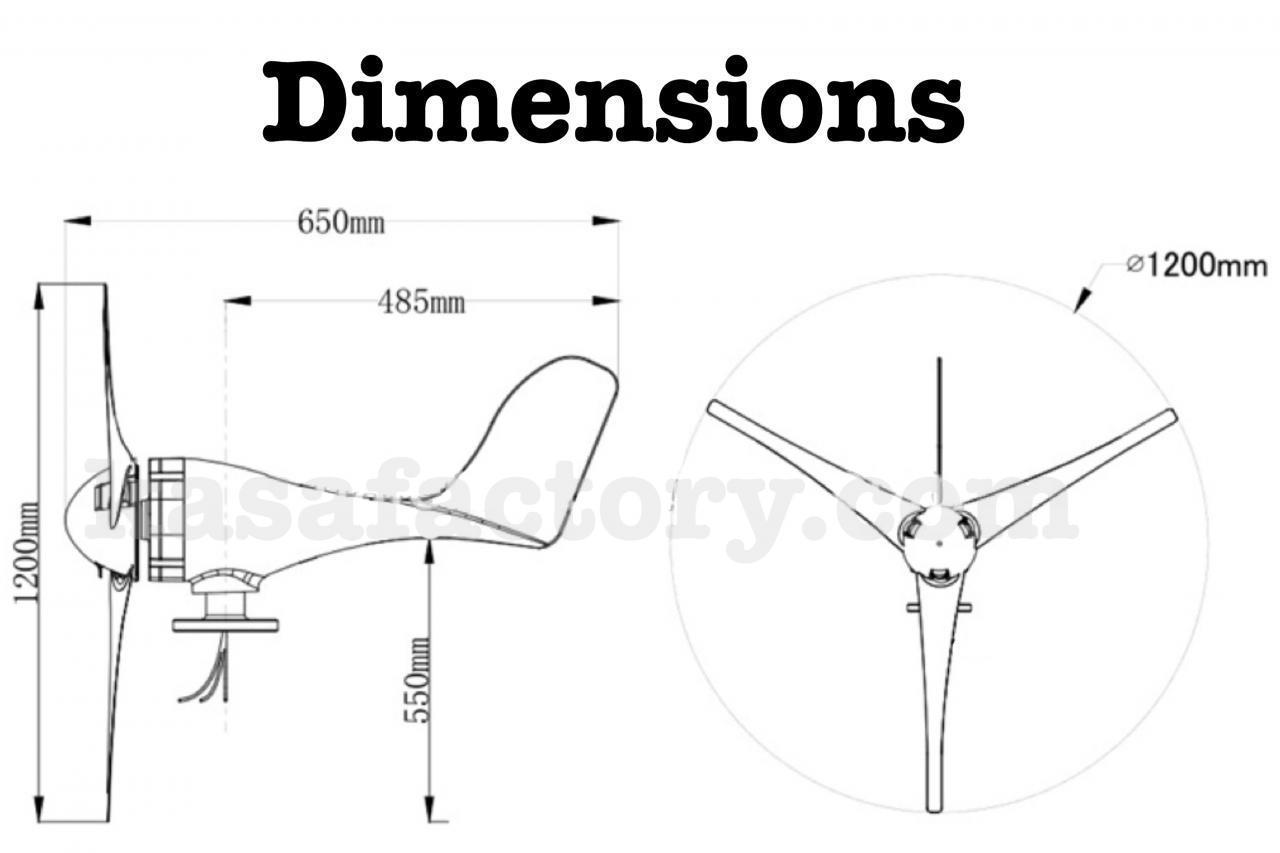

• Wheel diameter 1.2m
• Start-up Wind Speed 7 km/hr
• Rated Wind Speed 40 km/hr
• Survival Wind Speed 160 km/hr
• Net Weight 9 kg
• No. of blades 3
• Working temperature -40 to +80 degrees celcius
• Design Life 20 years

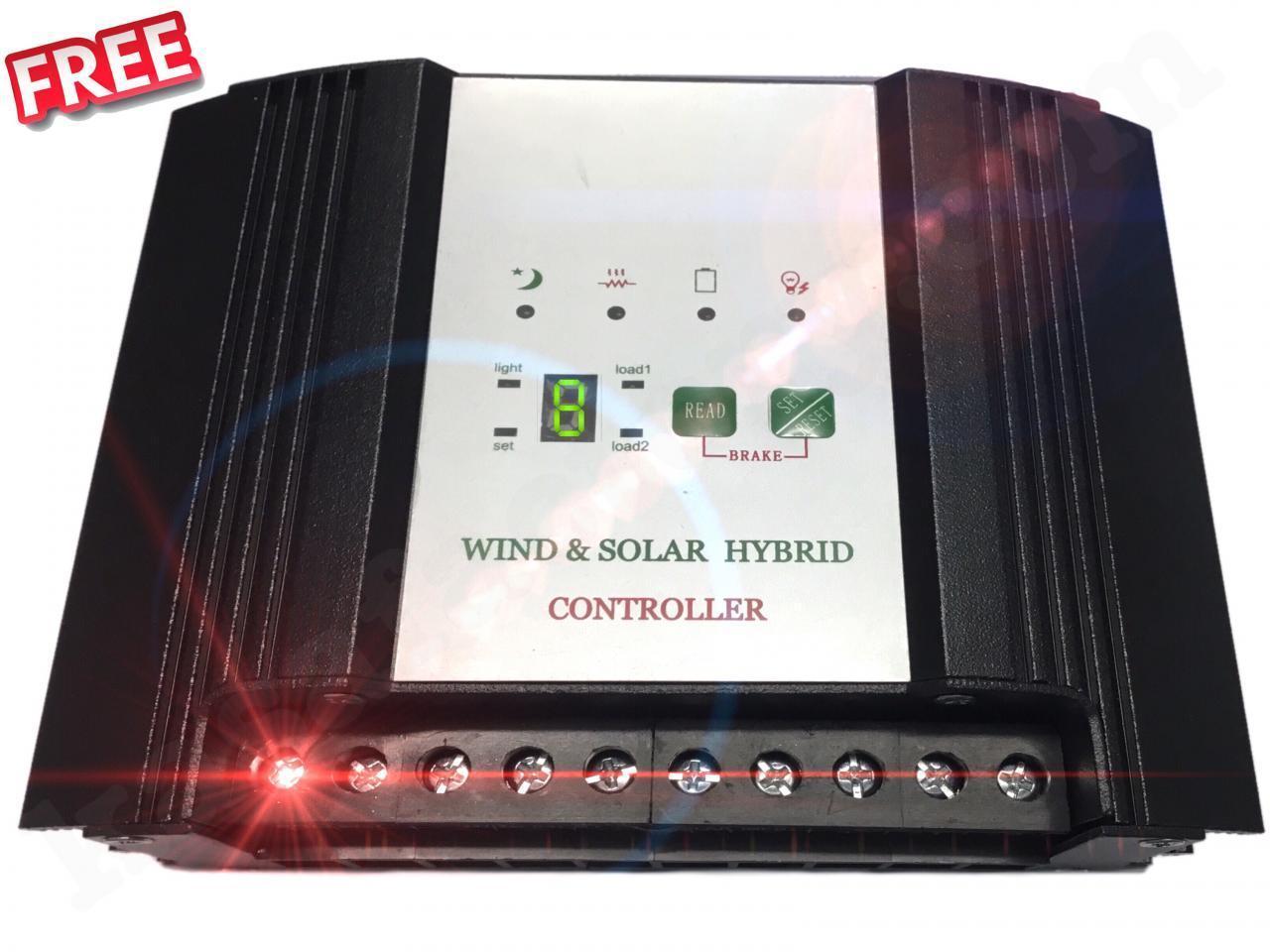

Controller Specifications:

• TOTAL WIND / SOLAR (max) 250W
• Wind Power (max) 200W
• Solar Power (max) 50W

Simple Basics before installation below-

• Read Installation Manual Supplied before installing (very important if you are new to this technology)
• Do not install on rainy or windy days
• Connect the 3 wires from the wind turbine together to fuse them and do not hand spin before the final connection. The wind turbine produces electricity and should not be connected until the controller and battery are connected first.
• Connect the Controller to the Battery before anything else. Only after you have connected the controller to the battery are you allowed to connect the wind turbine
• Do not use wind turbines without a controller/battery as electricity is produced which needs to be stored
• Do not install blades upside down otherwise, bolts will not fit into the turbine hub (see install pictures)

Package includes:

• 200W 12V KASA Series IV Wind Turbine
• FREE Hybrid Digital Controller included means you can connect a solar panels (optional)
• Installation Flange with bolts included

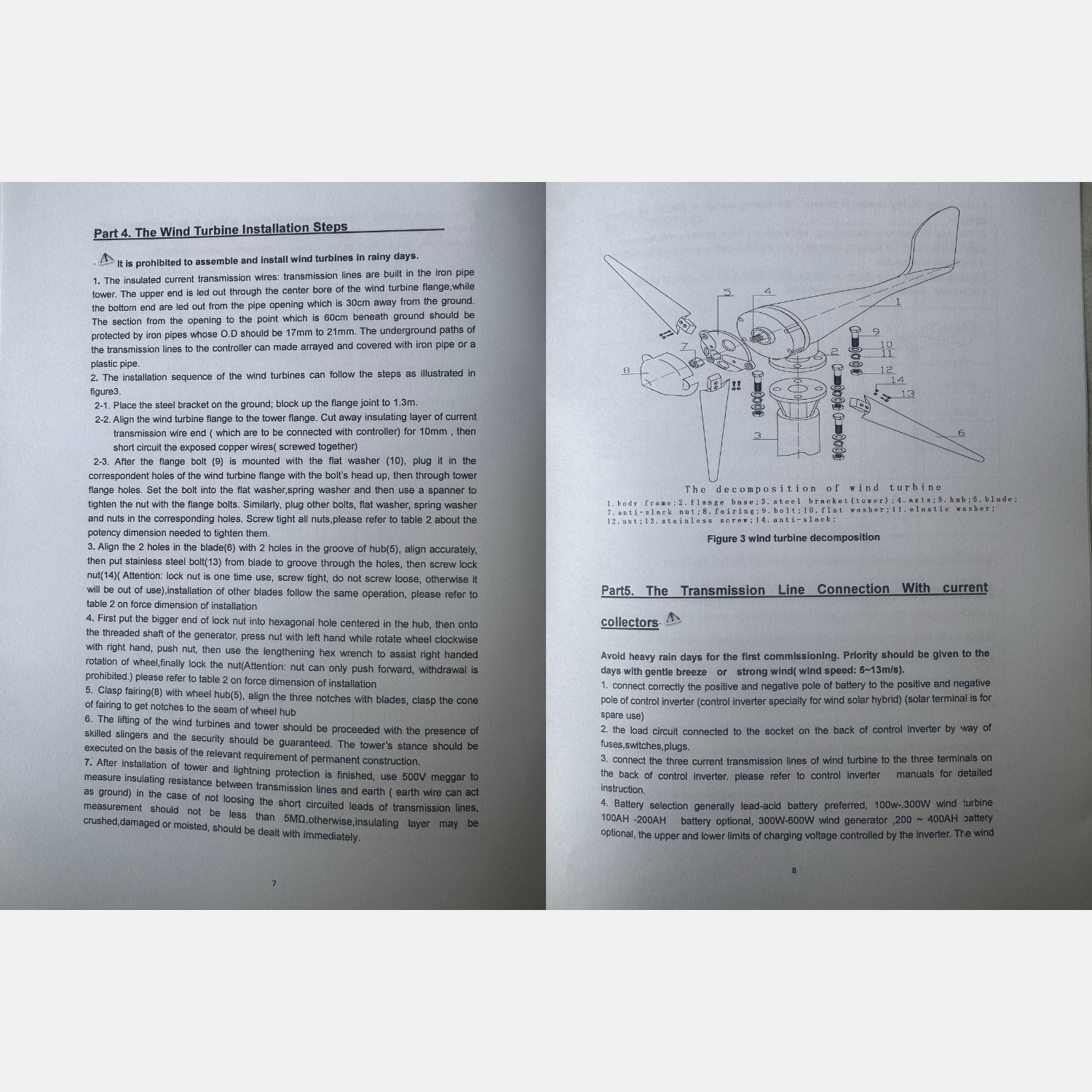

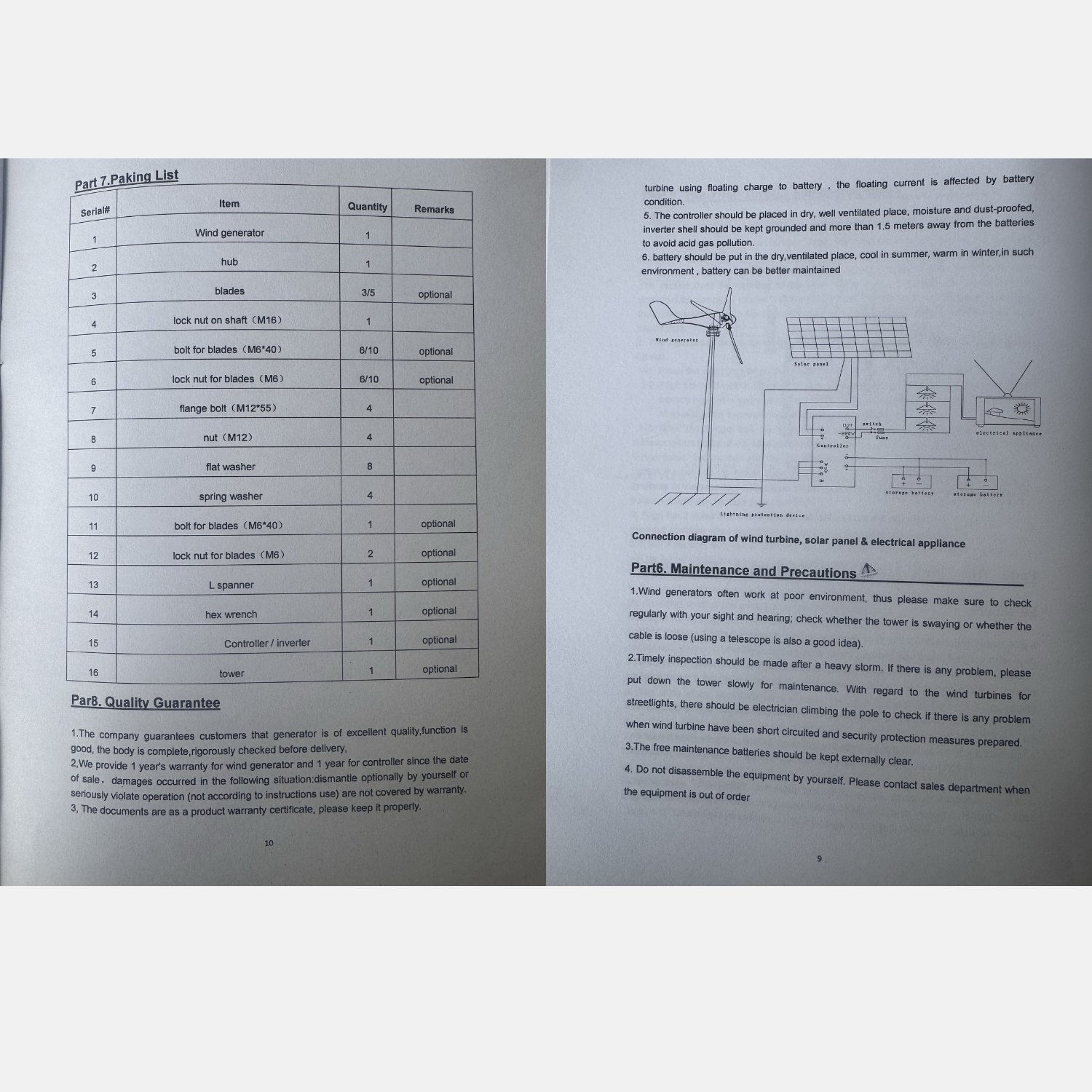

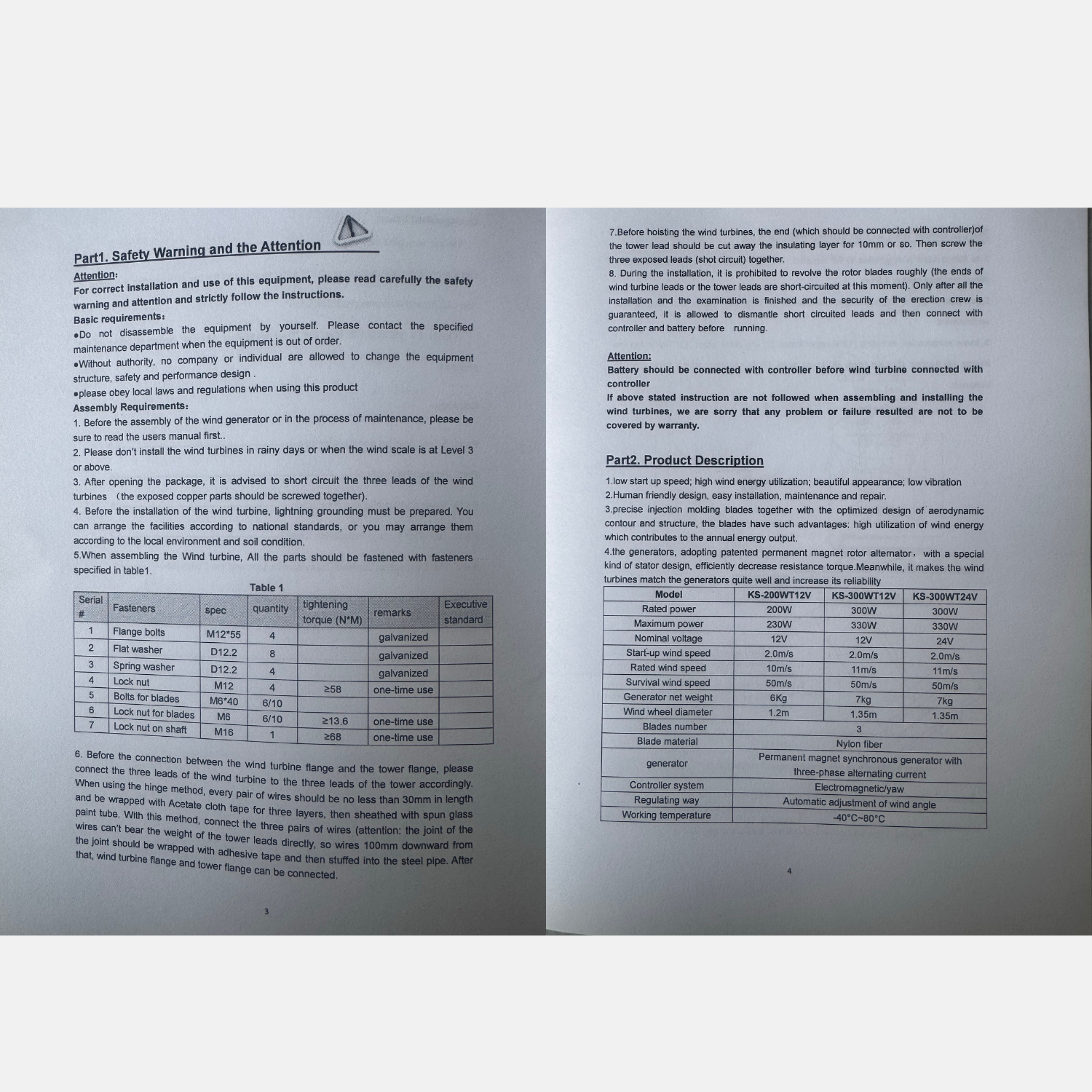

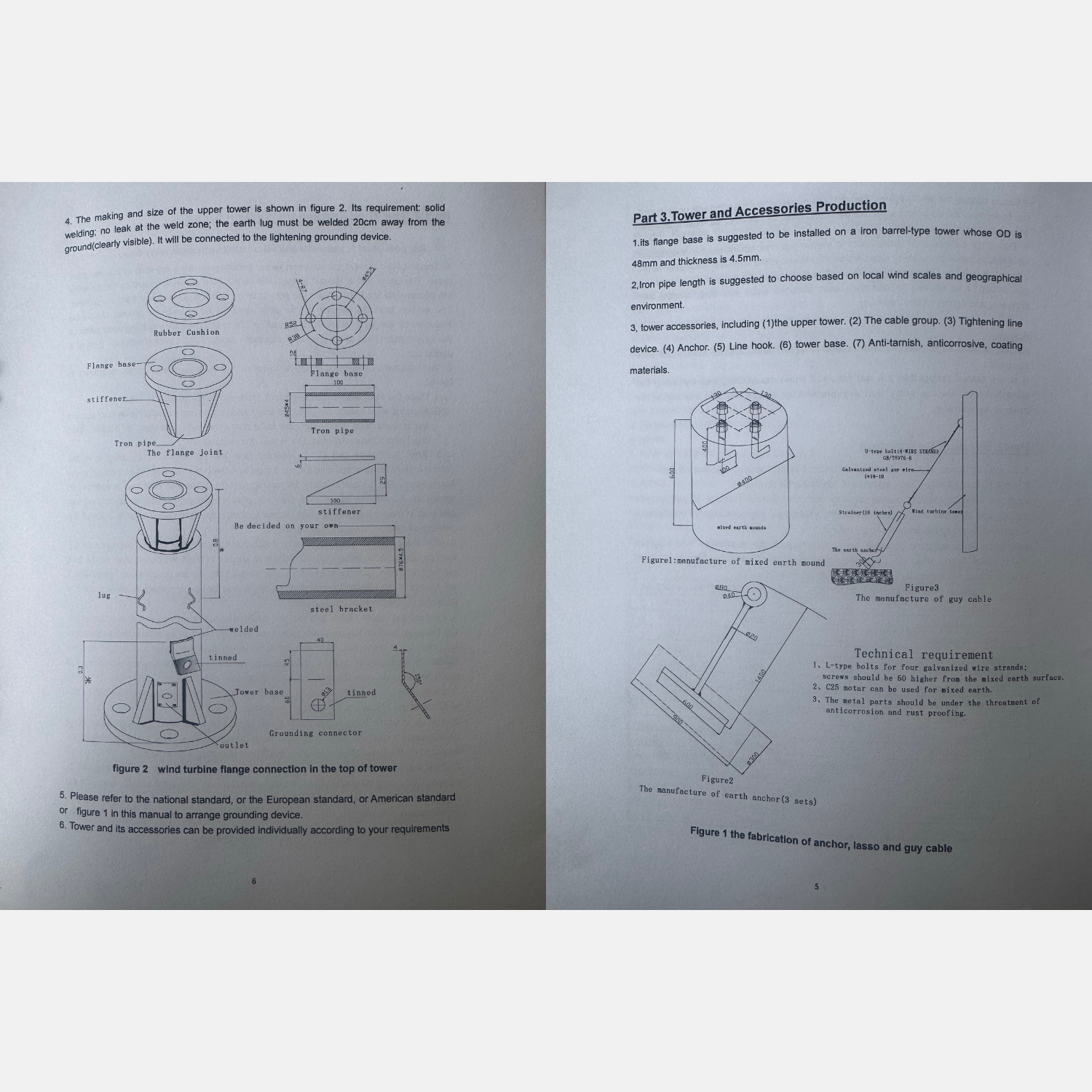

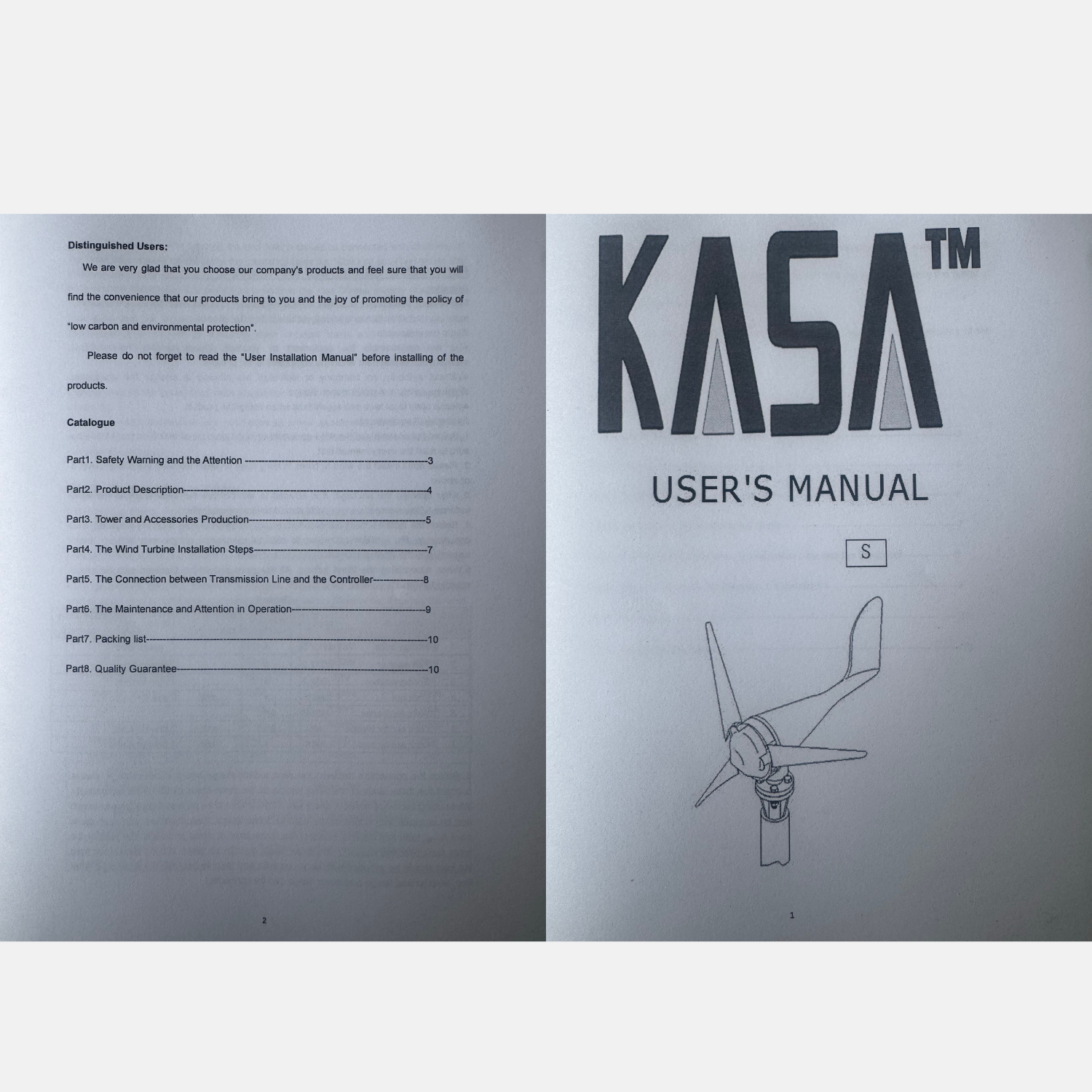

• Installation and assemble manuals for both wind turbine and controller
